550Mpa Shelf Pallet Racking Roll Forming Machine Step Beam

Brand Name : BMS

Model Number : Shelf

Certification : SGS,CE,ISO9001

Place of Origin : Xiamen，China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 set per month

Delivery Time : 45 days

Packaging Details : Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Item No : YX125-70

Form Speed : 12-16m/min

Weight : 6 T

yield strength : G340-550Mpa

warranty : 24 months

Shaft diameter : φ80mm

Cutter : Cr12MoV

Color : Bule + Orange or Customization

Contact Now

Hot Sale Shelf Pallet Rack Step Beam Roll Forming Machine YX125-70

Profile:

Main machine parameter

No	Main Item	Description
1	Suitable Material	Galvanized Steel,Cold Roll Steel
2	Material thickness	1.5-2.0mm
3	Material Yield strength	G350-550Mpa
4	Forming station	About 28 steps
5	Rolled	GCr15 steel
6	Shafts Diameter	ф80
7	Hydraulic power	4 kw
8	Main power	11 kw
9	PLC Brand	Siemens/Schneider/Delta
10	Touch Screen	Siemens
11	Encoder	Omron
12	Exit Rack	Unpower, Two-units, with rollers

Work Follow:

Decoiler→Guide Feeding→Roll Forming System→AUTO Post Saw Cutter Device→Exit Rack

Machine Components

1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 300mm,coil ID range 508mm±30mm.Capacity: Max. 3 Ton.

2) Feeding Guide

3) Main Machine

With feeding material guide, body frame made from H450 type steel by welding.
Side wall thickness: Q235 t18mm.
Rollers manufactured from GCr15 Steel(=EN31 Steel),HRC58-62
Shafts Diameter=ф80,precision machined.
Gear/Sprocket driving,about 28-step to form.
Main Motor=11KW , Frequency speed control.

550Mpa Shelf Pallet Racking Roll Forming Machine Step Beam

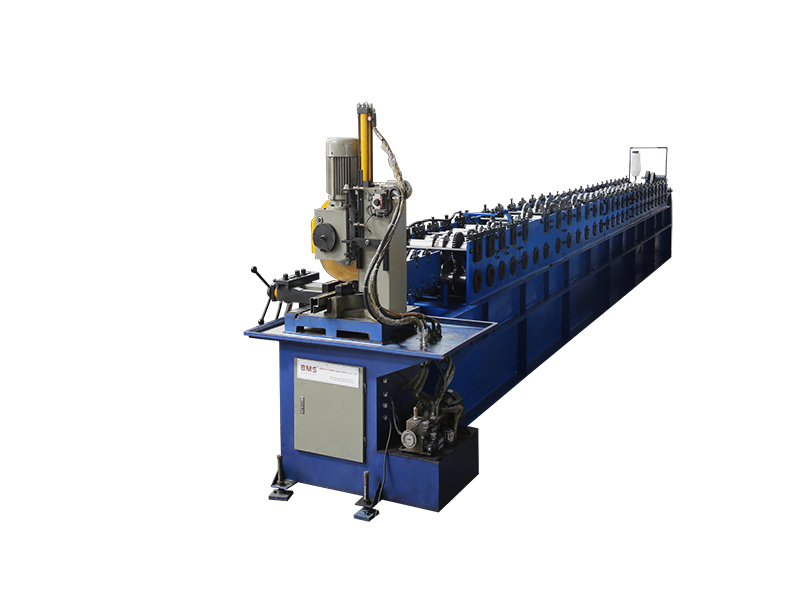

4) AUTO Post Saw Cutting Device

Post to cut, stop to cutting,motor: 4KW

550Mpa Shelf Pallet Racking Roll Forming Machine Step Beam

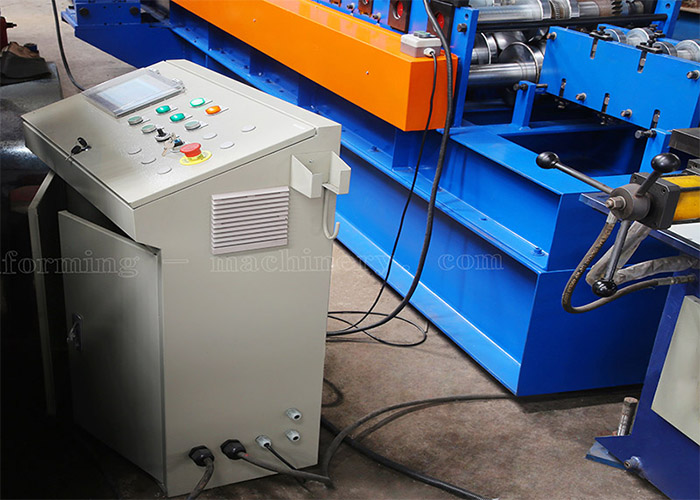

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

6)Exit Rack

Un-powered, Two units,with rollers on it for easy movement.

8)Product Show

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

After-Sale Service
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
