Decoiler→Feeding Guide Device→Leveling Devcie→Hydraulic Pre Cutting Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack
| Name | Model/Name | Quantity | Technical Description |
| 1.Decoiling System | Manual/ Auto | 1 set | Capacity: Max. 5 Ton |
| Roll Forming Machine | Levelling device | 1 set | For straightening the material, |
| servo feeding device, | 1 set | Servo motor 2.2KW |
| Drive device | 1 set | Main power 11KW |
| main forming machine | about 18 steps | Sidewall type structure |
| Saw cutter | 1 set | Patented adjustable cutter, 1 set |
| 3, Exit System | Exit rack | 1 PC | Length 3 meters |
| 4, PLC Control System | | 1 set | PLC control system, encoder positioning and cut-to-length automatically, touch screen operating
|
Machine Components:
1) 5 T Hydraulic Decoiler
Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:300mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Motor Power:3.0KW,With Press Arm
Max capacity:5 ton,Oil pump motor:2.2KW
2) Feed Guide Device
The guiding position can be adjusted for suitable material feeding

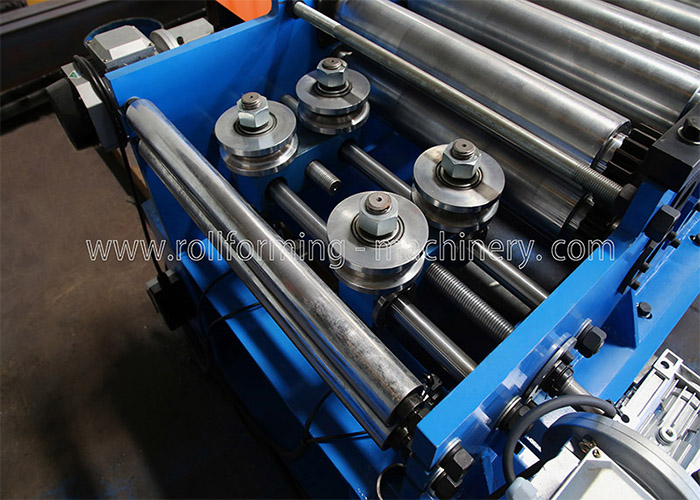

3) Leveling Device
4) Hydraulic Pre Cutting Device

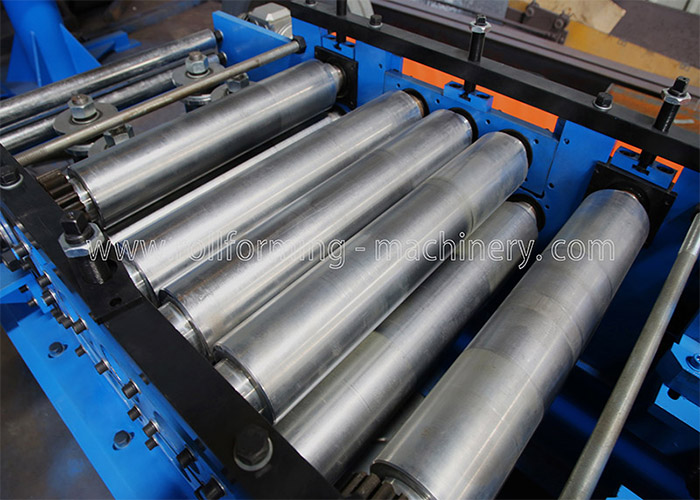

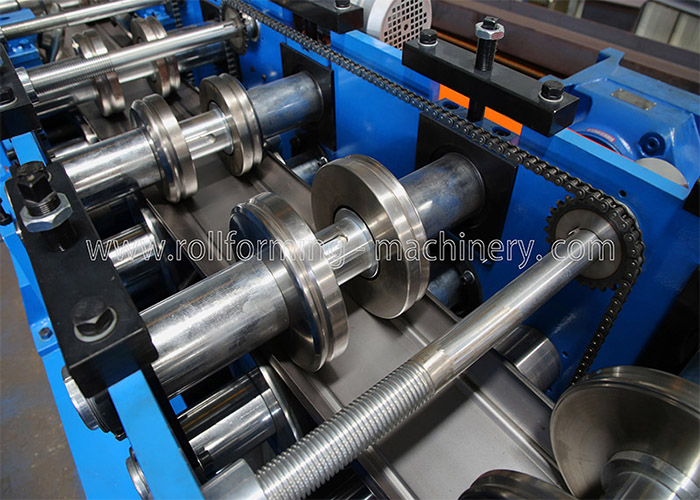

5)Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel(=EN31 Steel),Heat Treatment,HRC 58-62
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor(Polaroid brand)=11KW,Frequency speed control
Real forming speed:20m/min
Use three electric motors to auto change size
6) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting tool material: Cr12MoV(= SKD11 Steel),with at least one million times of cutting life,Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station
7) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

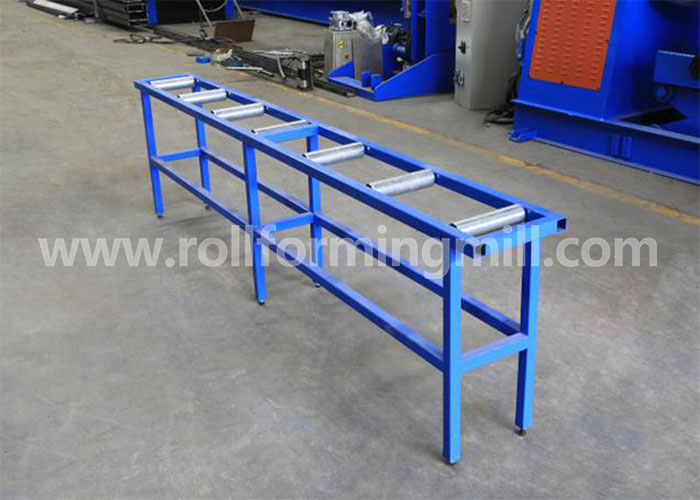

8)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.
9) Product Show
10) Seaming Machine
11) Sample Show
Packing Style

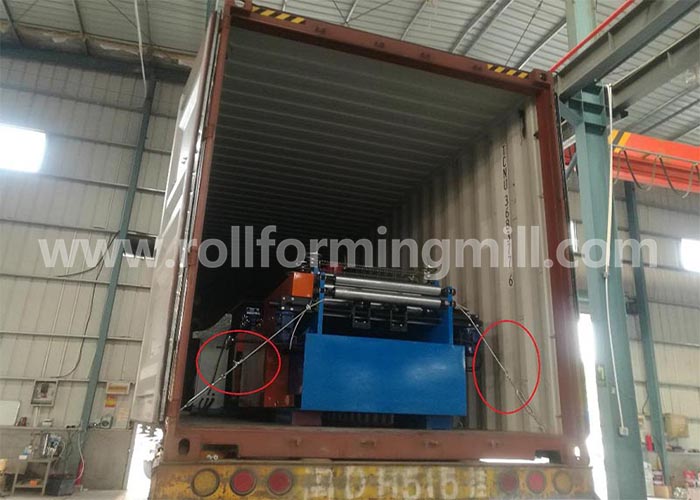

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
