15T-AUTO Change Shelf Laminate Deck(Board) Roll Forming Machine
Profile
Parameter
| | Item | Parameters |
| 1 | Type | Rack Roll Forming Machine |
| 2 | Thickness | 0.8-1.4mm |
| 3 | Forming Speed | 12-14m/min |
| 4 | Forming station | 24 steps |
| 5 | Main motor | 15KW |
| 6 | Hydraulic Power | 5.5KW |
| 7 | Roller | GCr15 |
| 8 | Weight | About 15 Tons |
Material:
Material Thickness: 0.8-1.4mm
Applicable material:Galvanized Steel(GI),Cold Roll Steel(CRC)
With yield strength :G340-550Mpa
Work Follow:

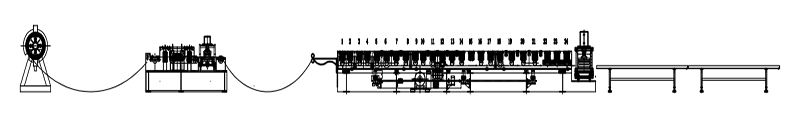

Decoiler→Servo Feeding & Punching Device→Feeding Guide Device→Roll Forming System→Hydraulic Post Bending & Cutting Device→Exit Rack
Machine Components:
1) 5 T Hydraulic Decoiler
Hydraulic control steel coil inner bore shrinkage and stop
Max. feeding width:600mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Max capacity:5 ton,Oil pump motor:2.2KW

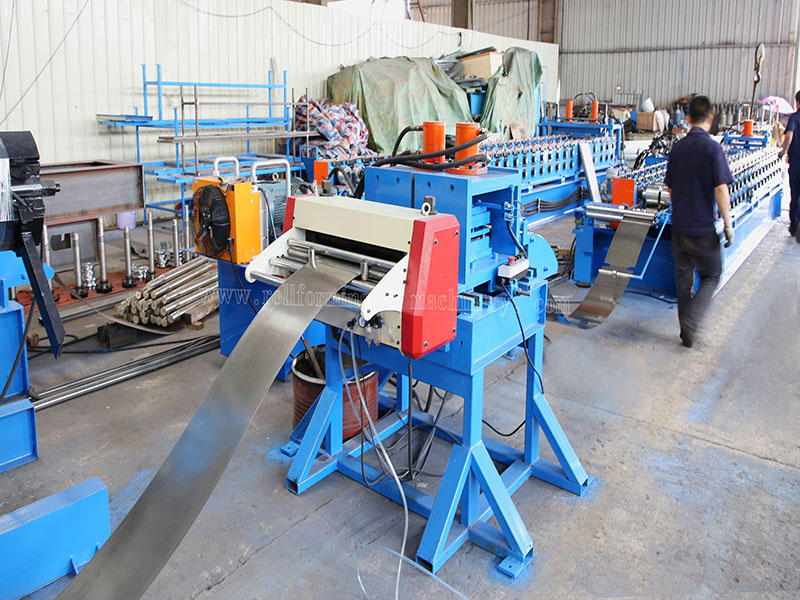

2) Servo Feeding & Punching Device
3) Feed Guide Device
The guiding position can be adjusted for suitable material feeding

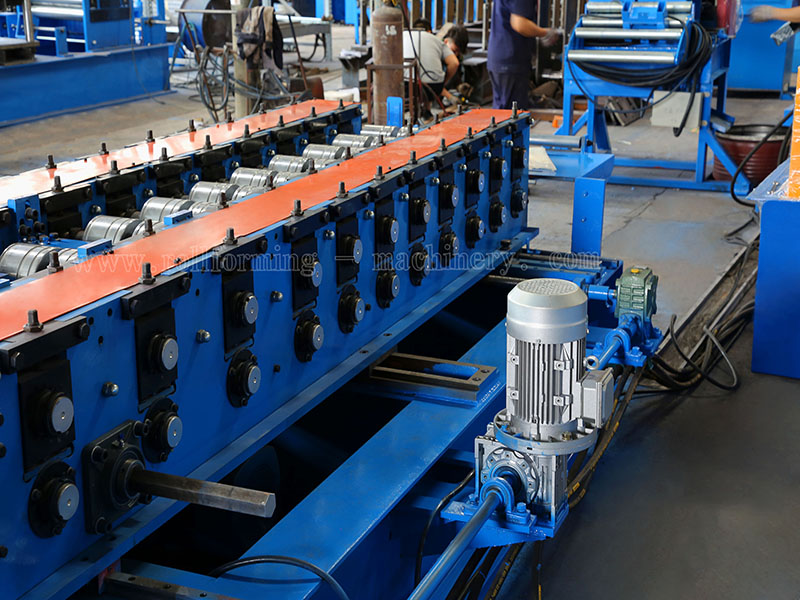

4) Main Machine
Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm

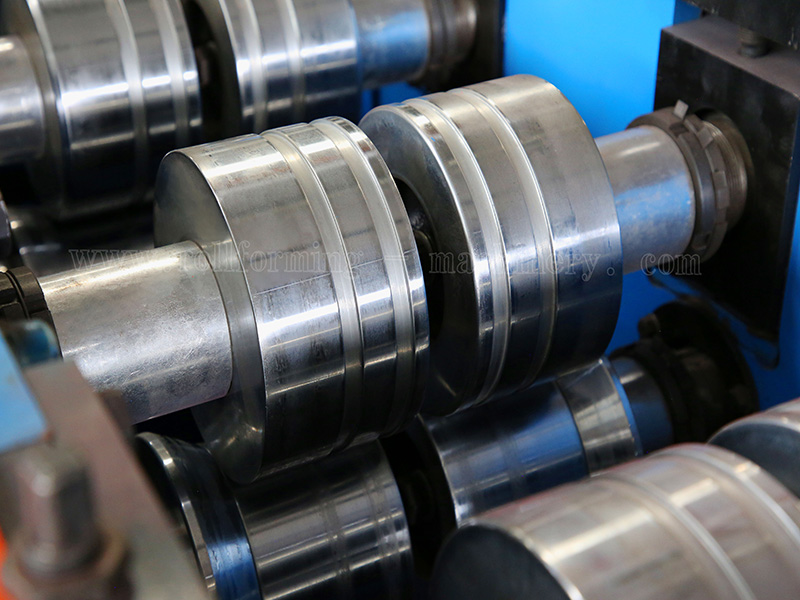

Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 24-step to form
Main Motor(Polaroid brand)=15KW,Frequency speed control
Real forming speed 15-18m/min(Not include cutting time)
Use electric motor to auto change size

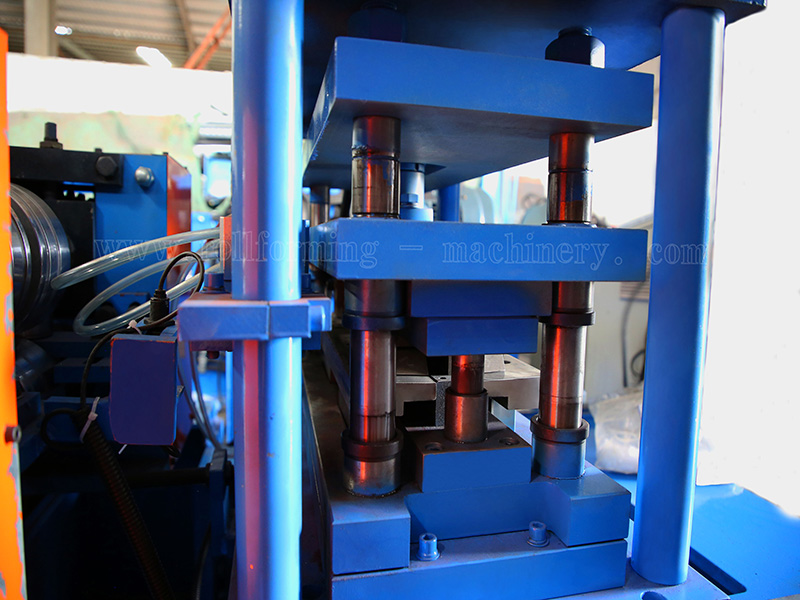

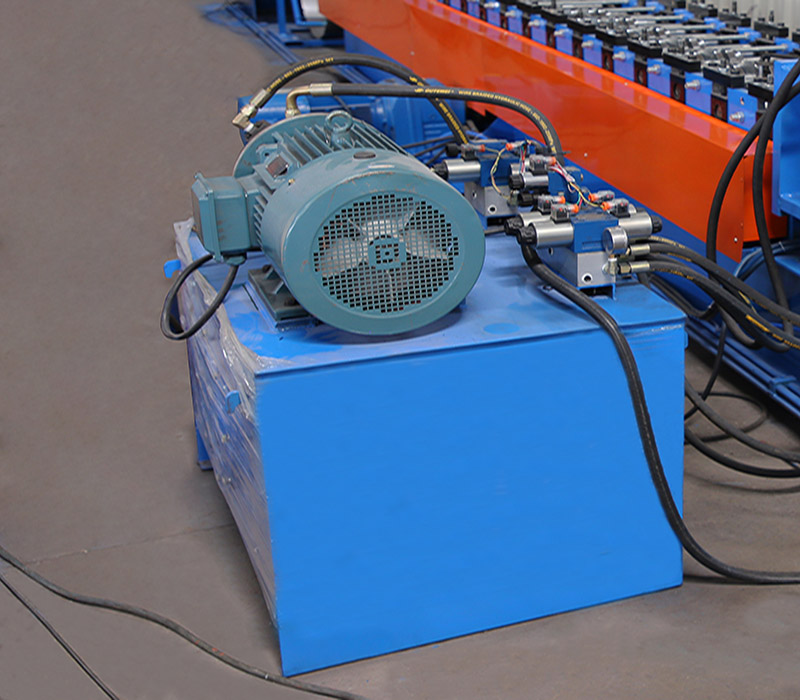

5) Post Hydraulic Bending & Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting & Bending tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station
6) PLC Control System
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.
7)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.

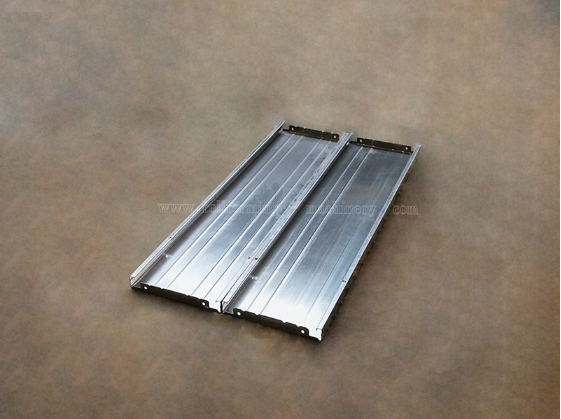

8) Product Show
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.
Terms Of Trade
1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
Packing Style
Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
