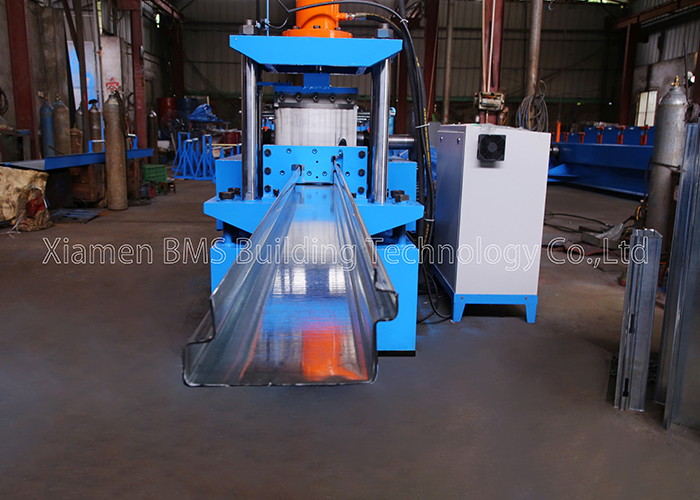

Sheet Metal Forming Machine For Packing Box House Match with Hydraulic Uncoiler Machine
1. Sheet Metal Forming Machine Work Flow
Decoiler – Feeding guide – Levelling device – Punching device – Main roll forming machine – Hydraulic cutting – PLC Control system – Stacker
2.Container House Cross Beam Roll Forming Machine Technical Parameter
| Container House Cross Beam Roll Forming Machine |
| No. | Main Parameter | Specification | Optional |
| 1 | Applicable materials | Galvanized Steel,350Mpa | |
| 2 | Forming speed | 0-25m/min | Or according to your requirement |
| 3 | Forming station | 12stations | According to your profile |
| 4 | Decoiler | Hydraulic decoiler | Hydraulic decoiler or manual decoiler |
| 5 | Motor | China famous brand | Siemens Motor |
| 6 | PLC Control System | Schneider(French brand) | Siemens |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ material | GCr15 | Cr12 |
| 10 | Station structure | Wallplate | Forged Iron station Or Wall panel structure |

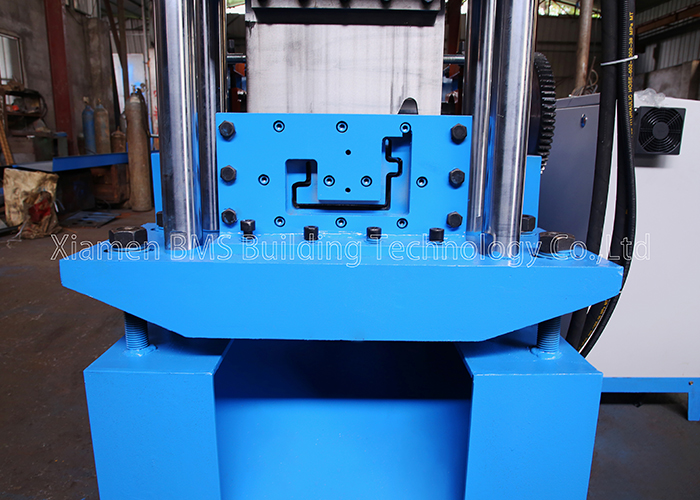

| 11 | Cutting | Cr12Mov=D2 | |
| 12 | Power supply requirement | PLC automatic control system,380V 50Hz 3Ph | Or as your requirement |
| 13 | Line speed | 25m/min | |
| 14 | Main colour | Blue+Gray | Or as your requirements |
3. Sheet Metal Forming Machine Description
We formulate different solutions according to customers' drawings, tolerances, budgets, etc., and provide professional one-to-one services to meet your various needs.
No matter which product line you choose, the quality of BMS will ensure that you get the perfect configured machine.
The thickness of the sink that can be processed can be 0.5mm-2.0mm, and it can also be processed according to your requirements.
Payment
30% T/T payment in advance
Packaging
Standard waterproof package for Sheet Metal Forming Machine.
Delivery
Within 45 days
Guarantee
24 month of free service/ pay service all the machine life
Installation and training
1. The visit is welcomed, we will teach you how to install&operate, and train your workers/technicians.
2. If not visiting, we will send you user manual and videos.
3. Oversea service is available on the buyer's account if needed.
