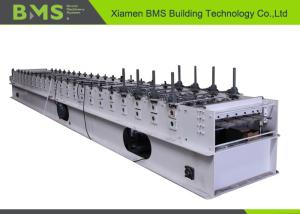

Fast Speed 11 KW 45# Steel Roll Forming Machine High-Frequency Processing

Brand Name : BMS

Model Number : BMS

Certification : CE/SGS/ISO

Place of Origin : Xiamen，China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 35set/month

Delivery Time : 60days

Packaging Details : Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Tile type : roll forming machine/building material machinery

Side wall thickness : Q235 t20mm Integral type wall board

Rollers : 45# steel High frequency processing

Main Motor : 11KW

Chain size : 18teeth

Screw bolts : grade 8.8

Contact Now

11 KW 45# steel High-Frequency Processing Taiwan Roll Forming Machine

Machine Components

1) 5 Manual Decoiler: one set

Automatically control steel coil inner bore shrinkage and stop

Max feeding width: 1000mm, Coil ID Range: 508±30 mm

Max Capacity: 5 Tons

2)Manual Pre-Cutter

The pre-cutter is connected with PLC control system, PLC is calculating profile length within roll forming. Once the material is required to change, PLC is calculating the length for total quantity and remind operator: production finishes and able to manual shearing material before roll forming so as to change material for new production.

It is the advanced function and good for production to save material, no waste

3)Main Machine

Main Parameter	Description	Remark
Sidewall	Thickness 18MM
Main Motor	11KW	Frequency speed control
Speed redcucer motor	R series
Chain size	18teeth	one inch with 18teeth
Screw bolts	Grade 8.8
Forming speed	18m/min
Forming station	24 step

4)Roller
