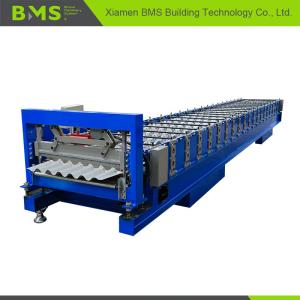

Stable Corrugated Roof Sheet Making Machine , Roof Panel Roll Forming Machine

Xiamen BMS Group

Stable Corrugated Roof Sheet Making Machine , Roof Panel Roll Forming Machine

  • 1
  • 2

Brand Name : BMS

Certification : ISO9001/CE/SGS

Place of Origin : Xiamen,China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 Set/Sets per Month

Delivery Time : 45DAYS

Packaging Details : Nude Packing in The Container Suitable for Corrugated Steel Panel Roof Sheet Roll Forming Machine

Model Number : Corrugated

Condition : New

Type : Tile Forming Machine

Tile Type : Steel

Production Capacity : 12-15m/min

Power(W) : 5.5kw+3kw

Voltage : AC 3-380V/415V/440V

Working material : galvanized sheet(GI),cold roll steel(CRC)

Thickness : 0.3-0.8mm

Yield strength : 245-550Mpa

Decoiler : Manual/Hydraulic for options

Housing : H350 beam

Side wall thickness : 18mm

Shaft : 75mm

Forming station : 20steps

Cutter material : Cr12Mov, Heat treatment

Output : about 12-15meters per minute

After-sales Service Provided : Engineers available to service machinery overseas

Port : Xiamen

Contact Now

Stable Corrugated Roof Sheet Making Machine, Roof Panel Roll Forming Machine

1.Main features of YX18-840 roof panel machine
The advantages of roof panel machine are as follows:
1. Able to produce two different profiles
2. Save space, more convenient.
3. Easy operation, low maintenance cost
4. Stable and durable

Main Configurations of Corrugated Roof Sheet Making Machine

No Items Qty Remark
1 De-coiler 1 set
2 Feeding guide 1 set
3 Roll Forming and Cutting Device 1 set
4 Guarding Cover 1 set Optional
5 PLC Control System 1 set

2.Detailed Images of YX18-840 roof panel forming machine

Machine Parts
1) YX18-840 roof panel machine logo punching device

2) YX18-840 roof panel machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body frame made from 400# H type steel by welding

3) YX18-840 roof panel machine post cutter
Brand: BMS Original: China
Made by high-quality mould steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa

YX18-840 roof panel machine decoiler
Brand: BMS Original: China
Manual Decoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop

Max. feeding width: 1250mm, coil ID range 470mm±30mm
Capacity: Max. 8 Ton

YX18-840 roof panel machine exit rack
Brand: BMS Original: China
Un-powered, one unit

Other detailes of YX18-840 roof panel machine

Suitable for material with thickness 0.3-0.8mm
Shafts manufactured from 45#, Main shaft diameter=φ75mm, precision machined
Motor driving, Gear chain transmission,20 steps to form
Main motor=7.5KW, Frequency speed control. Forming speed of approx.12-15m/min

PLC Control System (Touch screenbrand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English

After-sale service of roof panel machine

1. The warranty on YX18-840 roof panel machine is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
